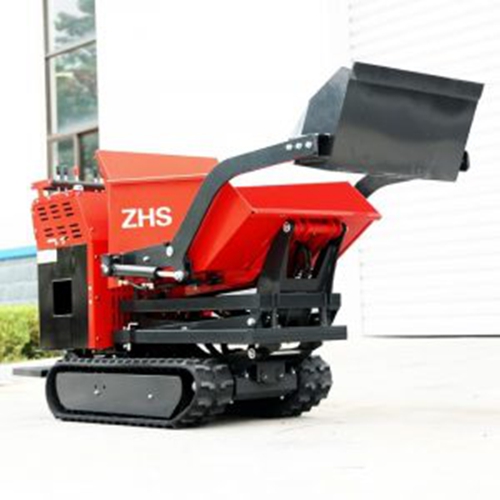

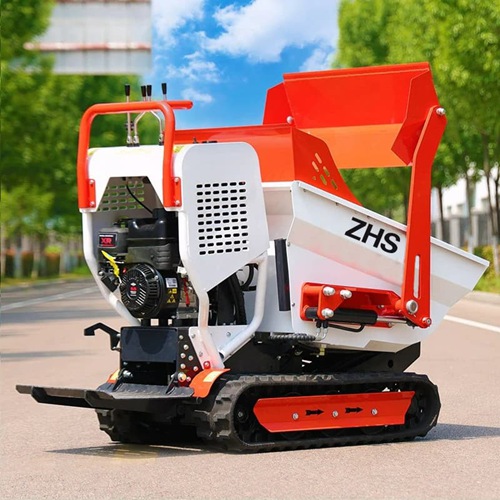

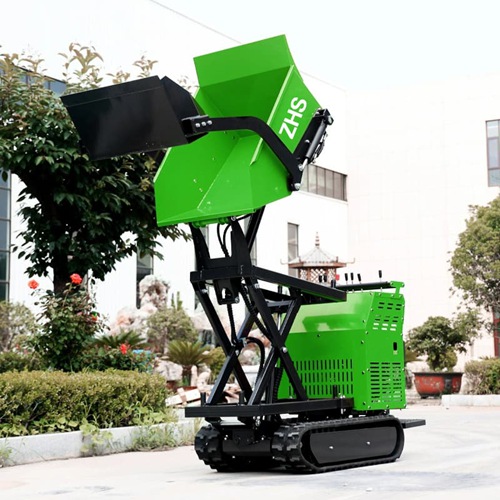

MD50 Mini Crawler Dumper
Description
Package Information
Inquiry
| Machine Weight | 520KG |
| Maximum Payload | 500KG |
| ENGINE PARAMETERS | |
| Engine Brand | RATO (Briggs&Stratton) |
| Engine Model | R210 |
| Displacement | 195cc |
| Rated Power | 6.5HP |
| GENERAL PARAMETERS | |
| Walking Speed | 1.7(km/h) |
| Minimum Radius of Turn | 1m |
| Track Center Distance | 520mm |
| Lifting and Tipping Height | 1350mm |
| Minimum Ground Clearance | 85mm |
| Climbing Ability | 20° |
| Hydraulic Tank Capacity | 11L |
| Hydraulic Oil Product Number | 46# anti-wear hydraulic oil |
| Box Volume | 0.22m³(1040*730*590mm) |
| Length * Width * Height | 1566x870x1660mm |
