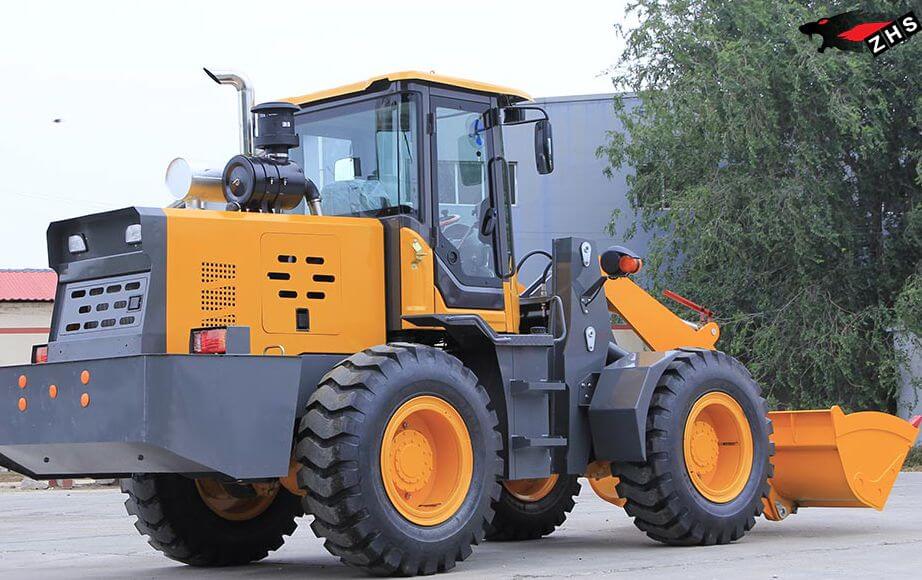

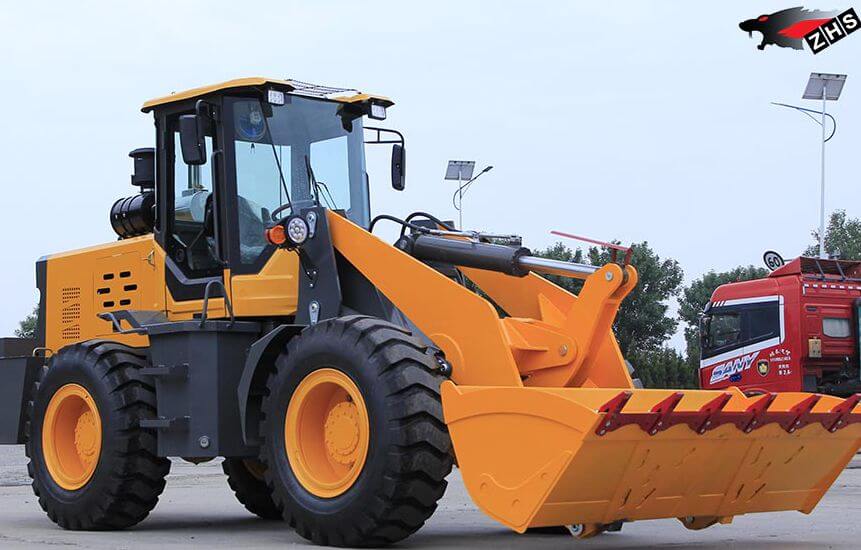

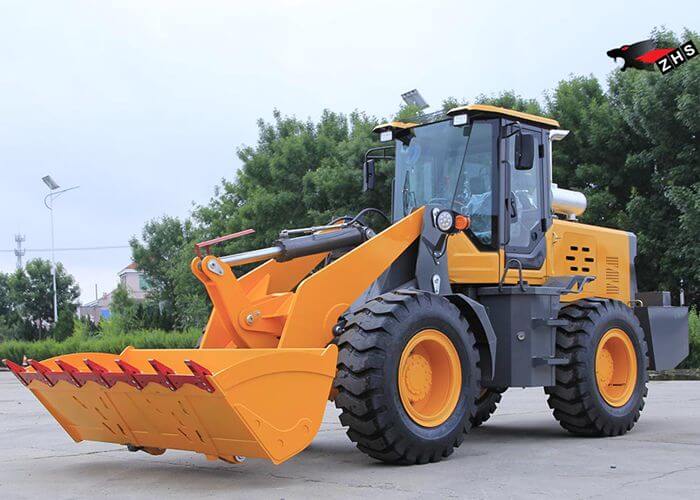

3.0ton Wheel Loader
※High Performance Engine from YUCHAl, WEICHAI, SIDA,
※DEUTZ, YUNNEl, CUMMINS for Optional.
※ Special 7:41 speed ratio with big hub reduction brings large torque,more powerful and quick acceleration;
※ High grade main reducer for light truck gets low failure rate;
※ Casting steel material, 200kgs heavier than others, stronger and more durable;
※Big size brake disc and brake caliper get good brake action.
※ Three-layer articulated steering design can uniform stress, prevent deformation;
※ Extended and widened hinge plate wedge in column strengthen frame greatly;
※ Trajectory technology get small turning radius and more flexible operation.
※ Stamping steel plate gets high structural strength;
※ Arc design brings good visual effect;
※ Electro-coating ensures excellent anti-corrosion property.
※ Separate design of front and rear brake system avoid brake failure;
※ Integrated design of pump and valve reduce oil temperature;
※ H type joint with two sealing ring ensure no oil leakage for life.
※ New LED lights bring better brightness and longer life,
※ Pickling and phosphating treated oil tank avoid block in hydraulic system;
※ Fast joint on air tank for blowing gun, air inflation and grease gun;
※ Steel Wire Nylon tyre, service life much longer than other brands.
Model | ZHS-30W |
Bucket capacity | 1.7m³ |
Rated load | 3000kg |
Weight | 8500kg |
Overall dimension | 6500×2150×3100mm |
Engine model | Xichai 92kw |
Pattern | in-line,6 cylinder |
Tire | 17.5-25 |
Gear Box | Double H/L 4 forward shift 2 reverse shift |
Type | hydraulic torque converter |
Pattern | automatic |
Axle | AWD, ZHS3.0 hub reduction |
Service brake | air hydraulic disc brake |
Parking brake | hand brake |
