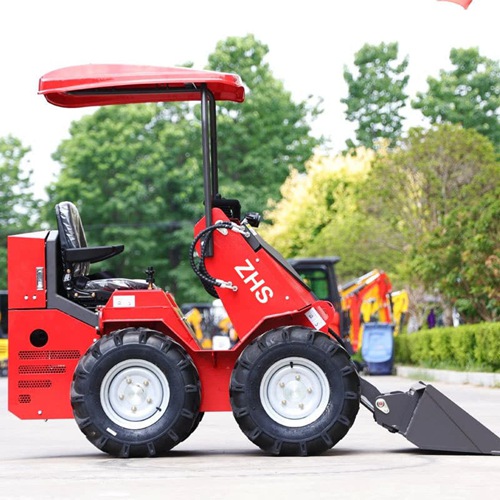

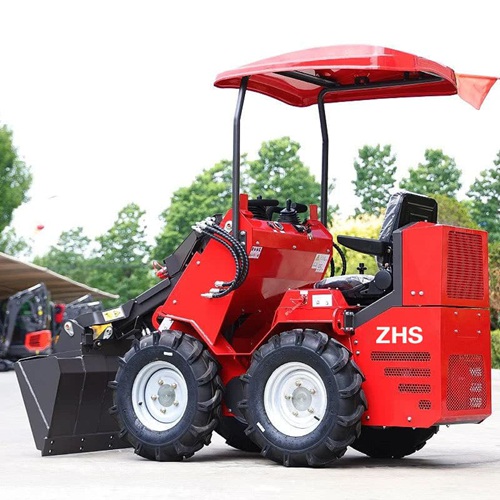

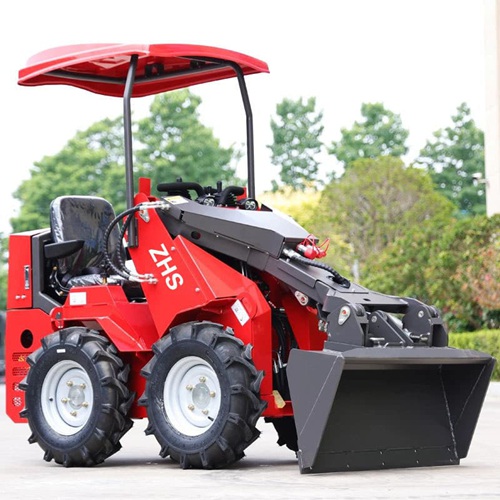

HY480 Mini Skid Steer Loader
Description
Package Information
Inquiry
| FUNCTION | |
| Rated Load | 480KG |
| Bucket Capacity | 0.2m3 |
| Maximum Lifting Force | 1200KG |
| Working Speed | 0-6.5km/h |
| Rated Pressure | 21Mpa |
| Lifting Time | 4.3s |
| Descending Time | 3.3s |
| Tipping Time | 1.5s |
| Climbing Ability | 30% |
| Working Weight | 1300KG |
| ENGINE | |
| Brand | Kubota / Perkins |
| Model | D1105/403J-11 |
| Output Power | 18.2KW/3000rpm ; 18.4KW/2800rpm |
| Maximum Torque | 70.4Nm/2200rpm ; 66.9Nm/2100rpm |
| Engine Oil | 5.1L/4L |
| CAPACITY | |
| Fuel Tank | 35 L |
| Hydraulic Oil Tank | 25L |
