Description

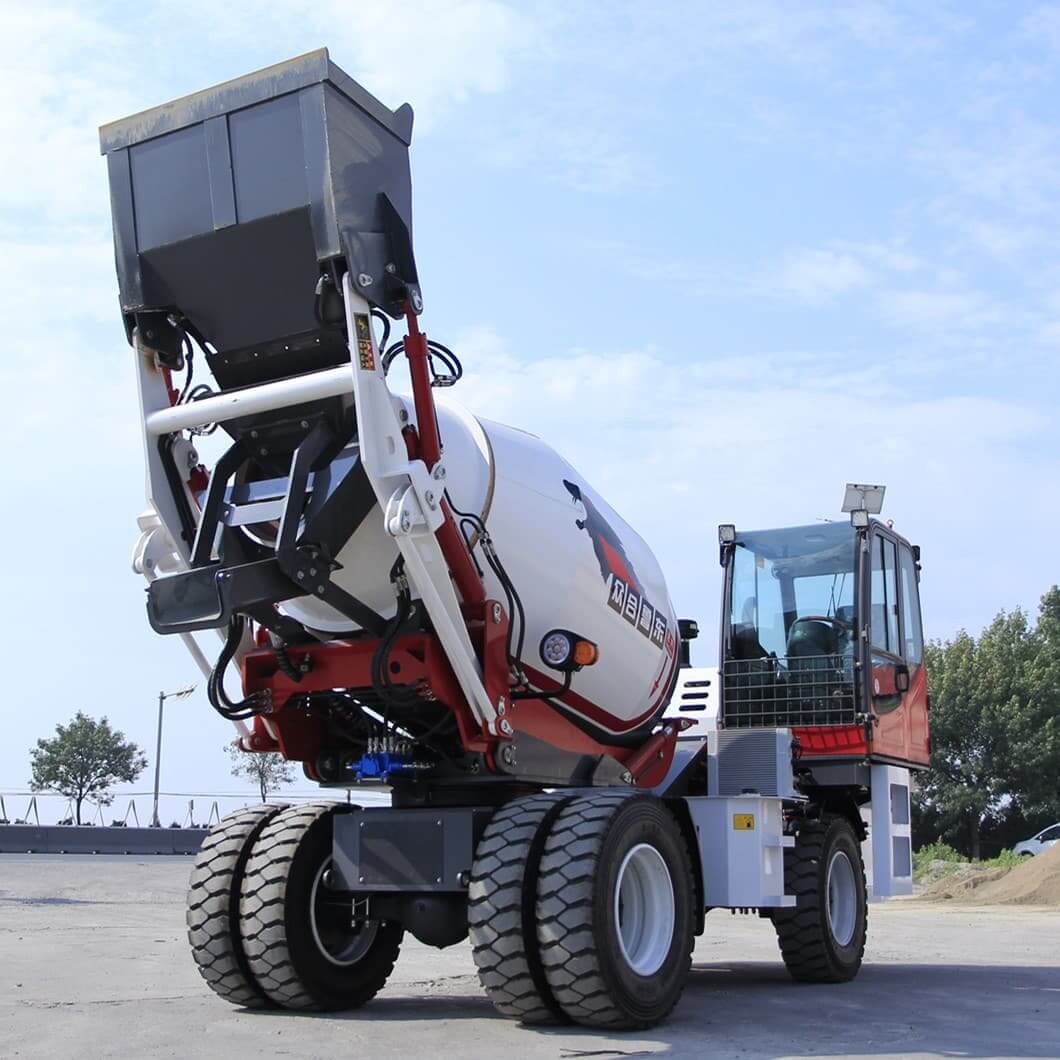

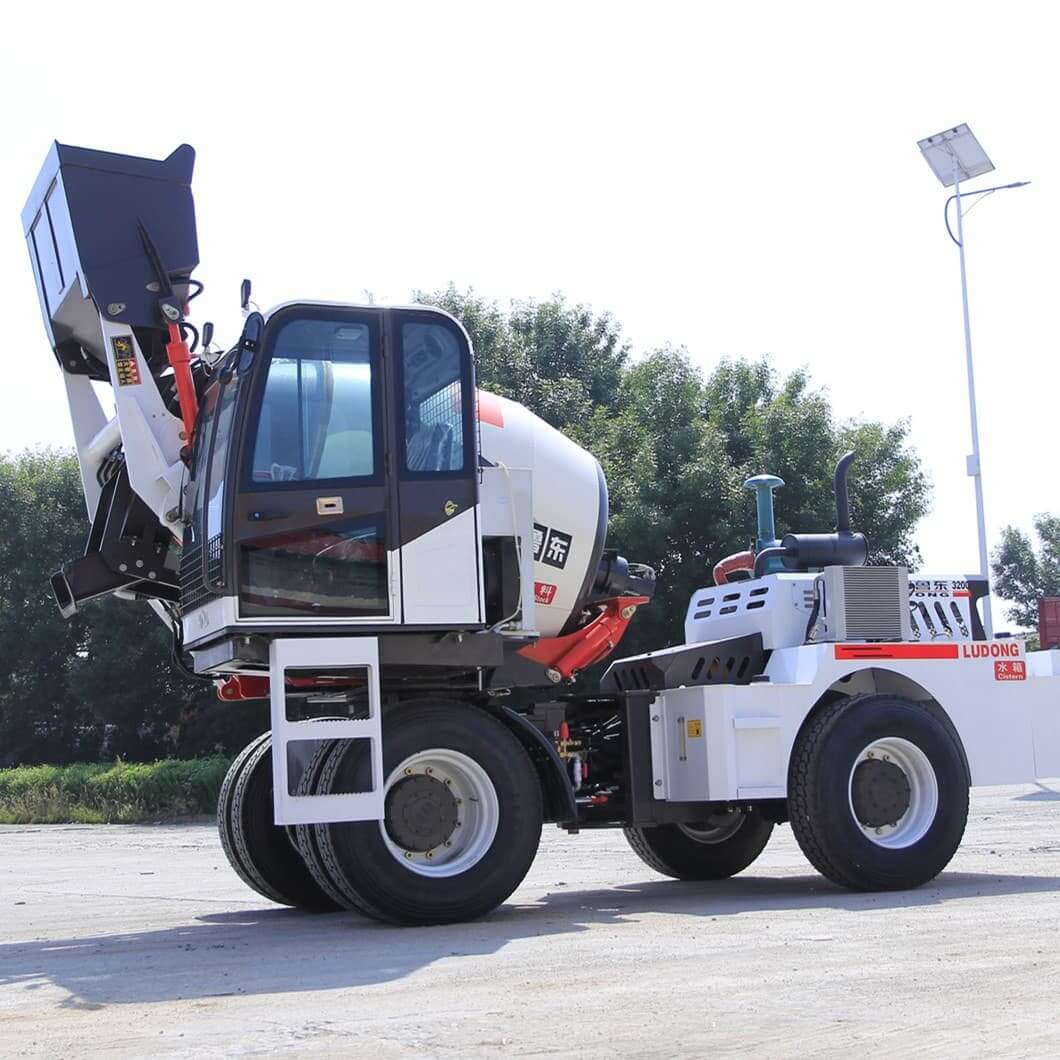

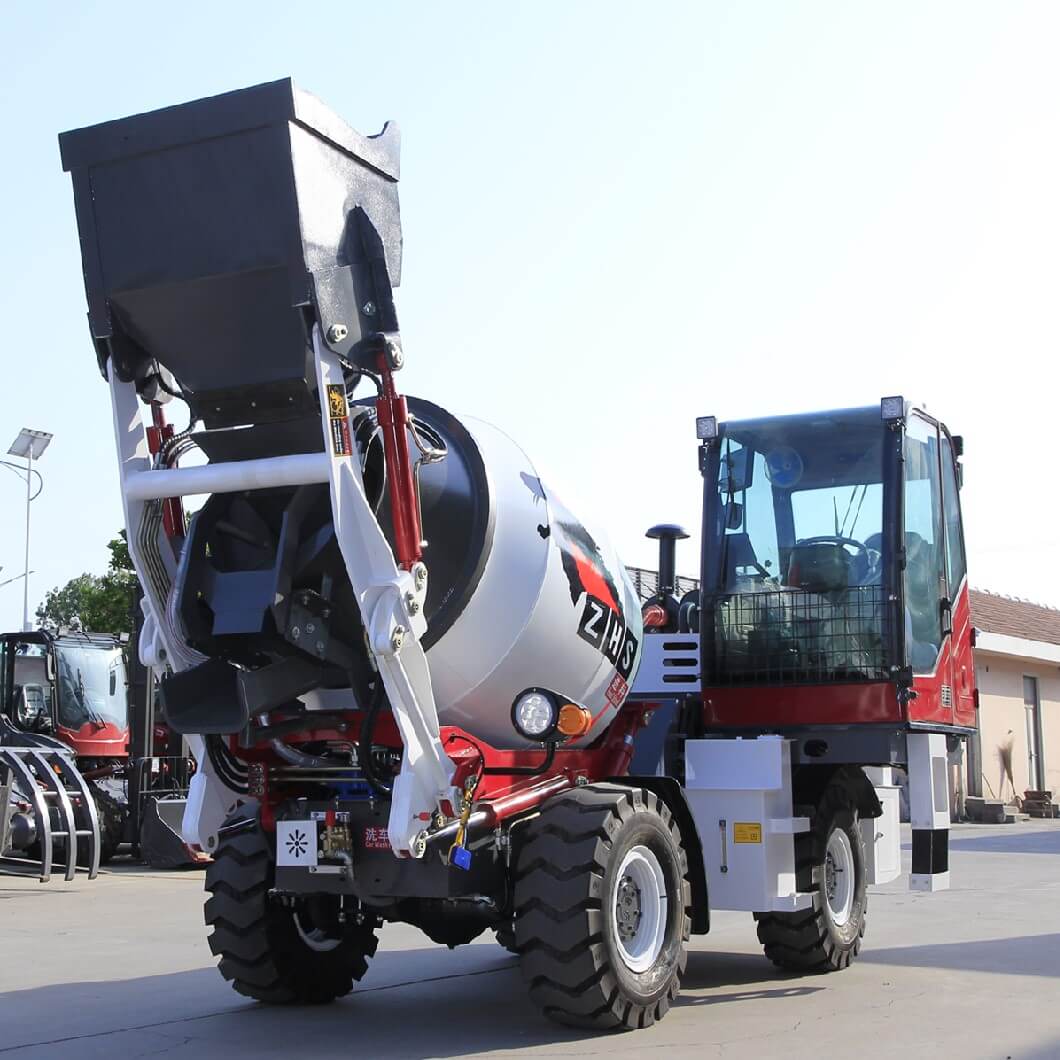

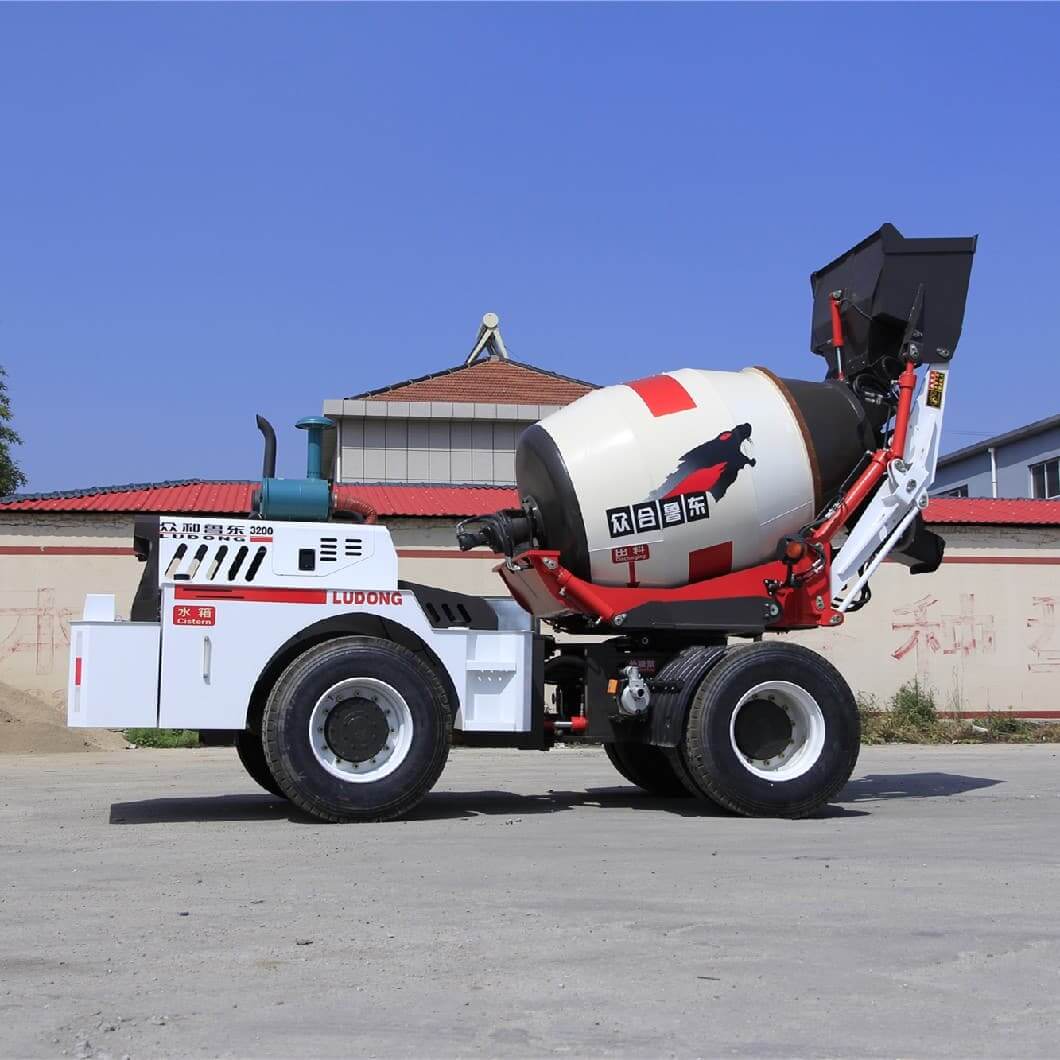

The 7th generation self-loading mixer has undergone significant upgrades. The bucket down function has been enhanced, enabling it to truly achieve multi - functionality. With an enlarged brake caliper, the braking performance has been substantially improved. Additionally, it is equipped with a high - pressure car - washing pump to maintain the cleanliness of the self - loading mixer. Moreover, the water tank has been enlarged to boost concrete output.

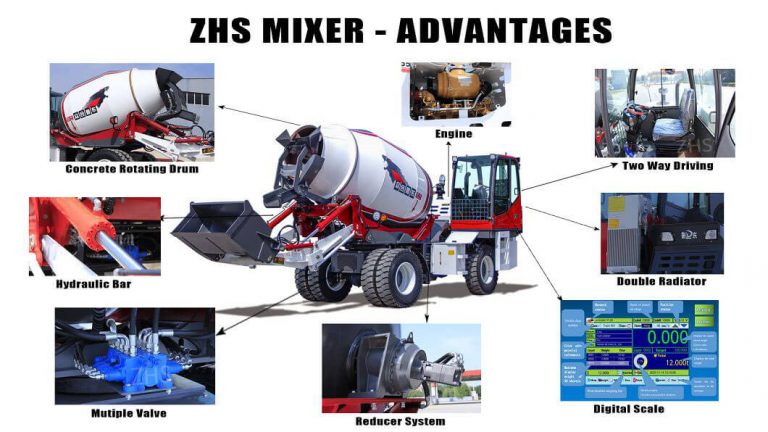

In essence, this 7th generation self - loading concrete mixer comprehensively realizes multiple functions such as loading, unloading, mixing, transporting, car - washing, and features the unique ±90° Concrete Tank Rotary Technology. Here are some of its key features: 1. **1.4×4 Vacuum High - Pressure Tires**: These tires have a pressure resistance 5 times that of ordinary tires, ensuring high safety and an extended service life. 2. **Radiator**: There are two radiators. One dissipates heat for the mixing tank, and the other for the engine. The mixer adopts the internationally advanced plate - independent cooling system, which effectively ensures the quality of the oil filter and precise temperature control. 3. **Hydraulic System**: It has an open oil inlet, a plunger motor, and two gear pumps that work in tandem. 4. **Joystick**: Two hydraulic pilot levers are used to control the bucket, boom, ±90° rotation of the concrete tank (a patented technology), and the lifting of the concrete tank. 5. **Bucket**: Equipped with a hydraulic automatic gate for convenient operation. 6. **Water Supply System**: Comprises a self - priming drive water pump, a 24V self - timed centrifugal pump, and a car - washing machine. 7. **Brake**: Activated by a small servo pump in an independent dual - circuit system. Each single wheel is equipped with 4 pistons and enlarged double brake calipers for enhanced braking power. 8. **Q345 Manganese Steel Frame**: Boasts a strong load - bearing capacity, ensuring high safety during operation. 9. **Driving Images**: Helps to eliminate blind spots on one side of the concrete tank, improving driving safety. 10. **Air Conditioner**: Provides a comfortable working environment for the operator. 11. **Electronic Scale**: Enables strict control over the weight and proportion of raw materials, ensuring the quality of concrete. 12. **Luxurious Cab**: Designed with every detail in mind to offer a comfortable operating experience. 13. **Optional Cement Hopper Engine**: Adds more flexibility to the mixer's functionality. 14. **Front and Rear Bi - Directional Drive**: Allows for greater maneuverability, and the drum can rotate ±90° simultaneously, further enhancing its multi - functionality.
